Product description

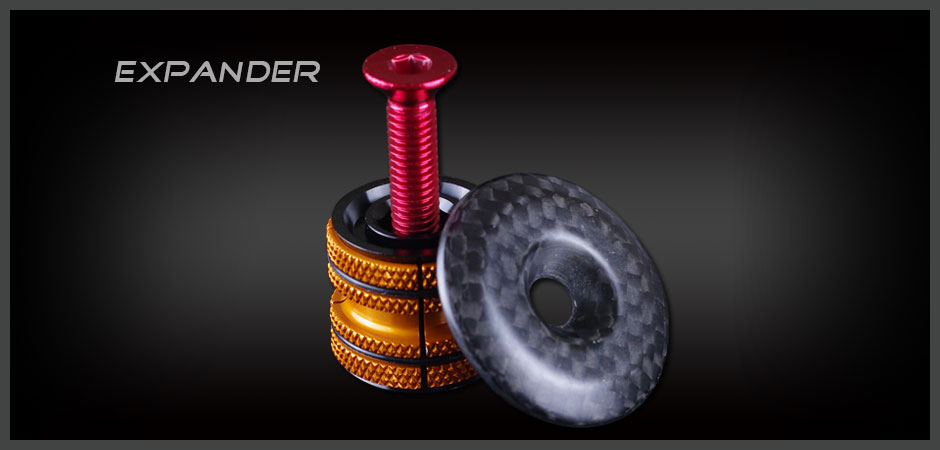

- A lightweight expander which works on different fork shaft materials like steel, alloy and last but not least carbon. The design refelcts our tribute to fuctionality and the concept to realize a lightweight solution for our customers. The main body of the expander weights just 11.3 g, the 32mm long countersunk alloy bolt weights just 2.4 g and the carbon top cap has a weight of 3.7g.
- The adjustment range corresponds to the inner diameter of the shaft which starts at 21mm and reaches up to 25.2mm. This range should fit to most carbon shafts.
Product details
| Compatible to: | Carbon, alloy or steel shafts with an outer diameter of 1 1/8 inches |
| Weight: | 11,3 g for the expander itself |
| Weight: | 2.4 g for the countersunk alloy bolt |
| Weight: | 3.7g for the full carbon topcap |
| Installation dimensions: | min 21mm to max 25.2mm |
| Material: | 7075 T6 alloy |
